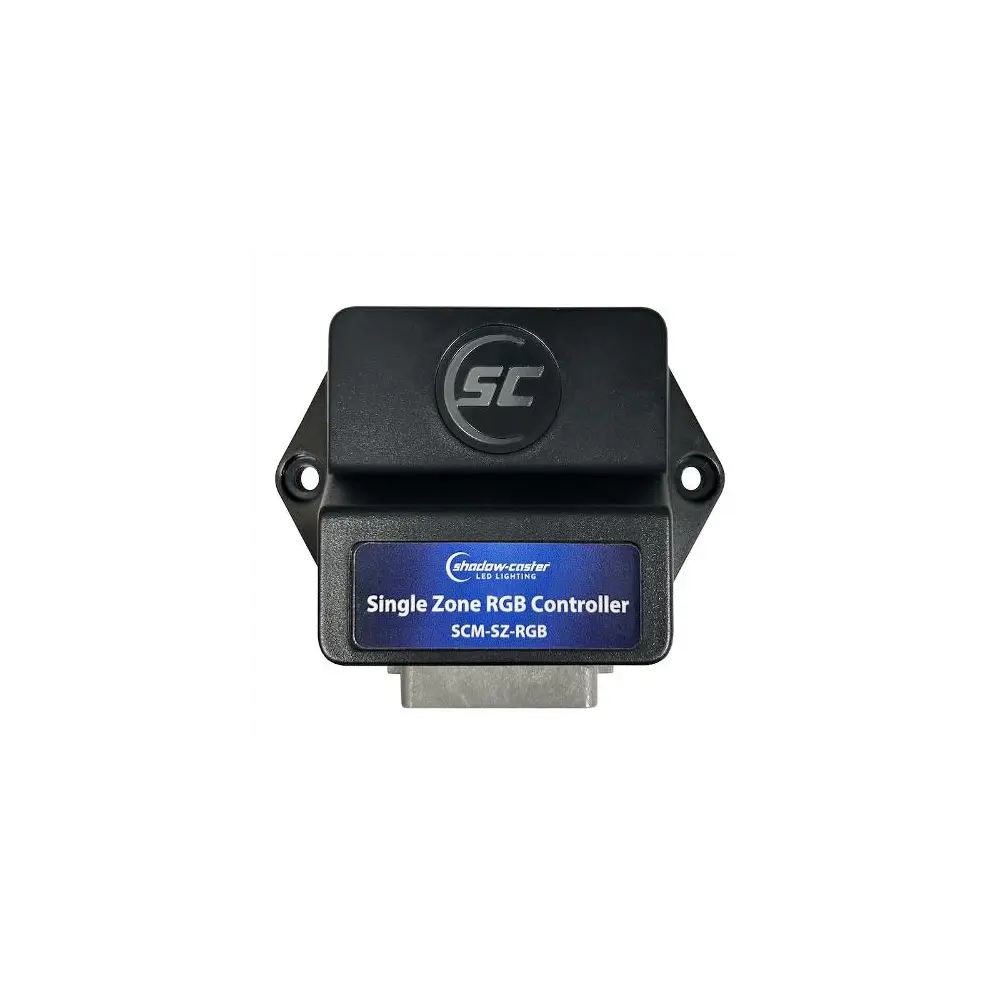

Shadow-Caster Single Zone Lighting Control – Shadow-Caster LED Lighting SCM-SZ-RGB
The Shadow-Caster Single Zone Lighting Control is a low cost, marine grade RGBW LED controller that can be operated from a standard push button switch to set color and brightness. The Single Zone Controller also has a built-in Shadow-NET interface that allows the controller to synchronize color and brightness control with other Shadow-NET devices, for example; to make Shadow-Caster underwater lights match the color of interior RGBW lighting.
Attributes
- Number of Zones: 1
- Power Supply: 12 To 24 Volt
- Ampere: 10 Amp
- Connection Type: Plug And Play
- Dimensions: 3-1/2 Inch Length x 2.9 Inch Width x 1.2 Inch Depth
- Color: Black
- Waterproof Rating: IP67 Waterproof
Features
- Shadow-Net Enabled For Expansion And Use With Other Shadow-Caster Products
- Backlit SC Logo Indicates Brightness And Color Or Flashes Red If Fault Detected
- Supports Color Rotate, Single And Multi-Color Fade
- Auto-Detect For White Channel
- Integrated Overcurrent Protection
- Operate From An Off/On/Momentary Switch Or A Single Momentary Push Button
- Limited 3 Year Warranty
