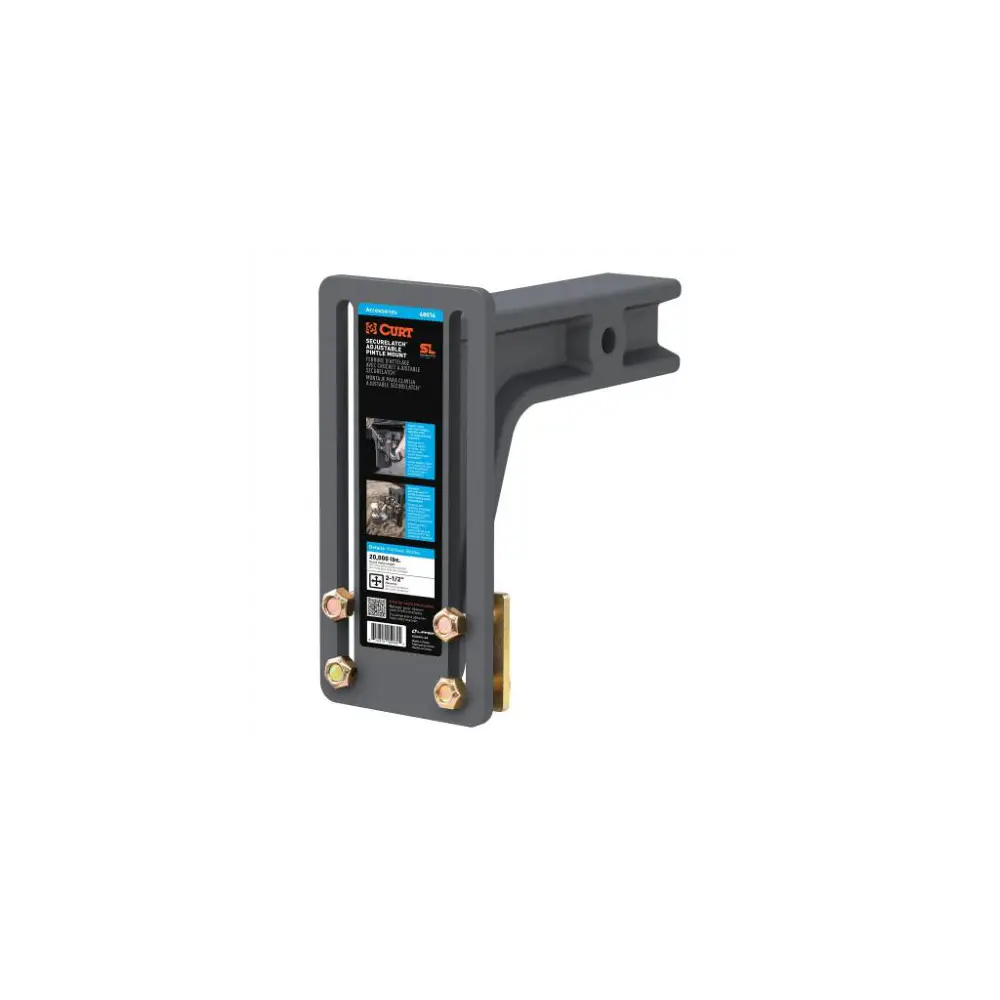

SecureLatch Adjustable Pintle Mount – 2-1/2″ Shank – CURT MANUFACTURING 48016
The SecureLatch™ pintle mount is unique from other pintle mounts because of its slotted design and double bolt plates. The mounting bolts fasten onto the pintle hitch and provide 48,000 pounds of clamp pressure when fully torqued. If you need to adjust the height, you only need one tool, and there’s no disassembly required. Just loosen the nuts enough to allow the pintle hitch to slide up or down in the slotted channels. The slots also provide more precise levelling versus fixed height positions.
Attributes
- Plate Height: 10-5/8 IN
- Receiver Tube Size: 2-1/2 IN
- Material: Cast Steel
- Finish: Dark Grey Teridium
Features & Benefits
- Slotted bolt plate provides max adjustability, instead of fixed height positions
- Quick, easy, one-tool height adjustments — no disassembly required
- Torqued bolt plates provide 48,000 lbs. total clamp load for secure connection
- Accepts SecureLatch pintle hooks and ball hitches (sold separately)
- 10-5/8″ high x 5″ wide plate for versatile height adjustment
- Tested and rated for 20,000 lbs. gross trailer weight
- Fits trailer hitches with a 2-1/2″ x 2-1/2″ receiver tube opening
- Cast iron construction is austempered for superior strength and wear resistance
- Teridium powder coat finish for excellent exterior durability
- Bright gold zinc-plated hardware for long-lasting corrosion resistance
- Limited lifetime warranty (one-year finish, one-year parts)
