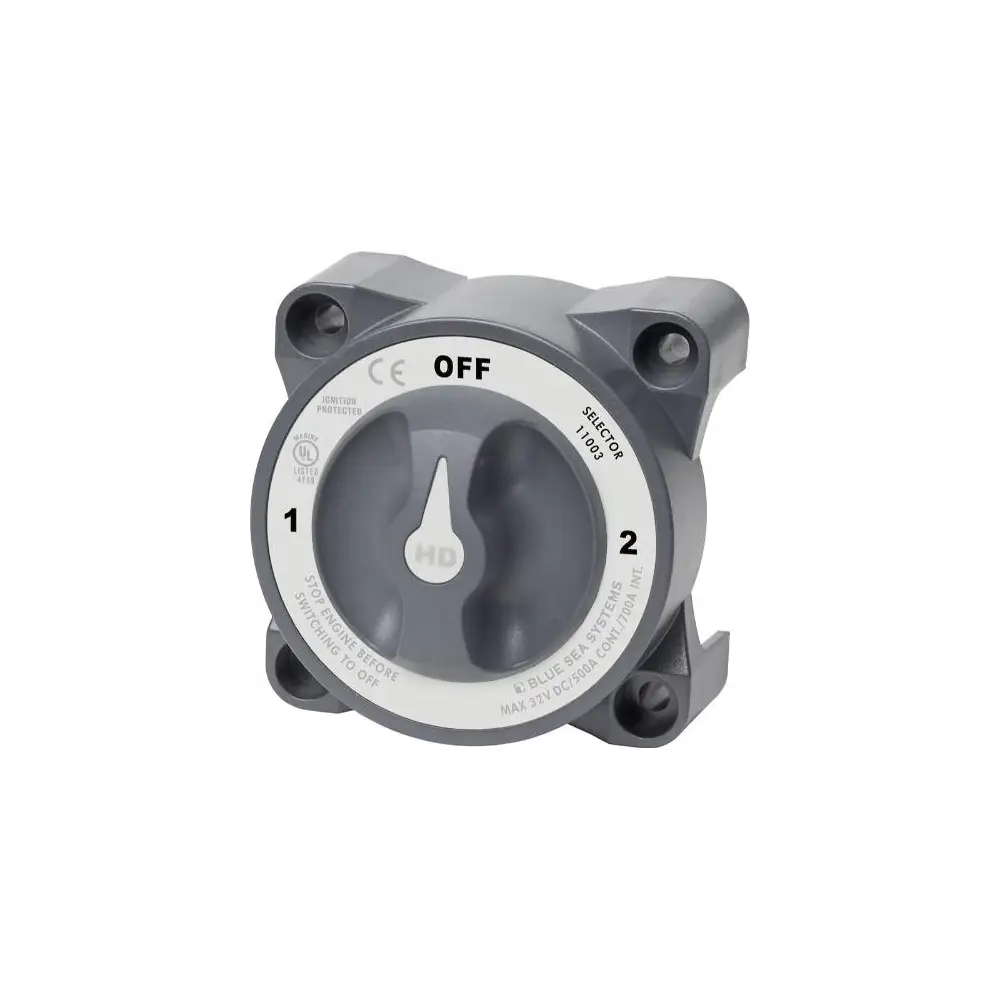

HD Series Battery Selector Switch – Blue Sea 11003-BSS
Battery switches isolate the potentially destructive energy in the battery banks when the boat is not in use or during emergencies. Switches isolated battery banks to all loads or combines battery banks to all loads.
Features
- Make-Before-Break Contact Design Allows Switching Between Battery Banks Without Power Interruption
- Accepts Two 4/0 AWG Battery Cables
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
- Tactile Indicator Conveys Knob Position By Feel
- Waterproof – Rated IP66 From Water Projected In Powerful Jets
- Case Design Allows Surface, Rear, Or Front Panel Mounting Options
- Ignition Protected—safe For Installation Aboard Gasoline Powered Boats
- Limited 2 Year Warranty
Details:
- Used To: Switch Isolated Battery Banks To All Loads
- Number Of Position: 3
- Battery Input: 2 Batteries
- Voltage Rating: 32 Volt
- Ampere Rating: 700 Amp Intermittent Rating And 500 Amp Continuous Rating
- Color: Black
- With Alternator Field Disconnect: Yes
- With Ignition Protection: Yes
