Electric Brake – Complete Assembly – Left Side; 12″ x 2″; CAP: 5,200 LBS – 023-105-00

LEFT HAND 12 X 2″ DEXTER ELECTRIC BRAKES – DEXTER 023-105-00

• Diameter: 12 Inch
• Width: 2 Inch
• Brake System: Electric
• Brake Type: Drum
• Axle Weight Capacity: 5200 Pound
• Position: Left
• Includes Backing Plate: Yes
• Includes Brake Shoes: Yes
• Includes Magnets: Yes
• Includes Actuating Lever: Yes
• Includes Adjusting Screw: No
• Includes Spring Hardware: Yes
• Left Hand complete electric brake assembly
• Mounts to 5-hole axle brake flange
• This brake is rated to a maximum capacity of 5200 lbs.
• White magnet wire
• Repair Kits:
  K71-105 Magnet Kit

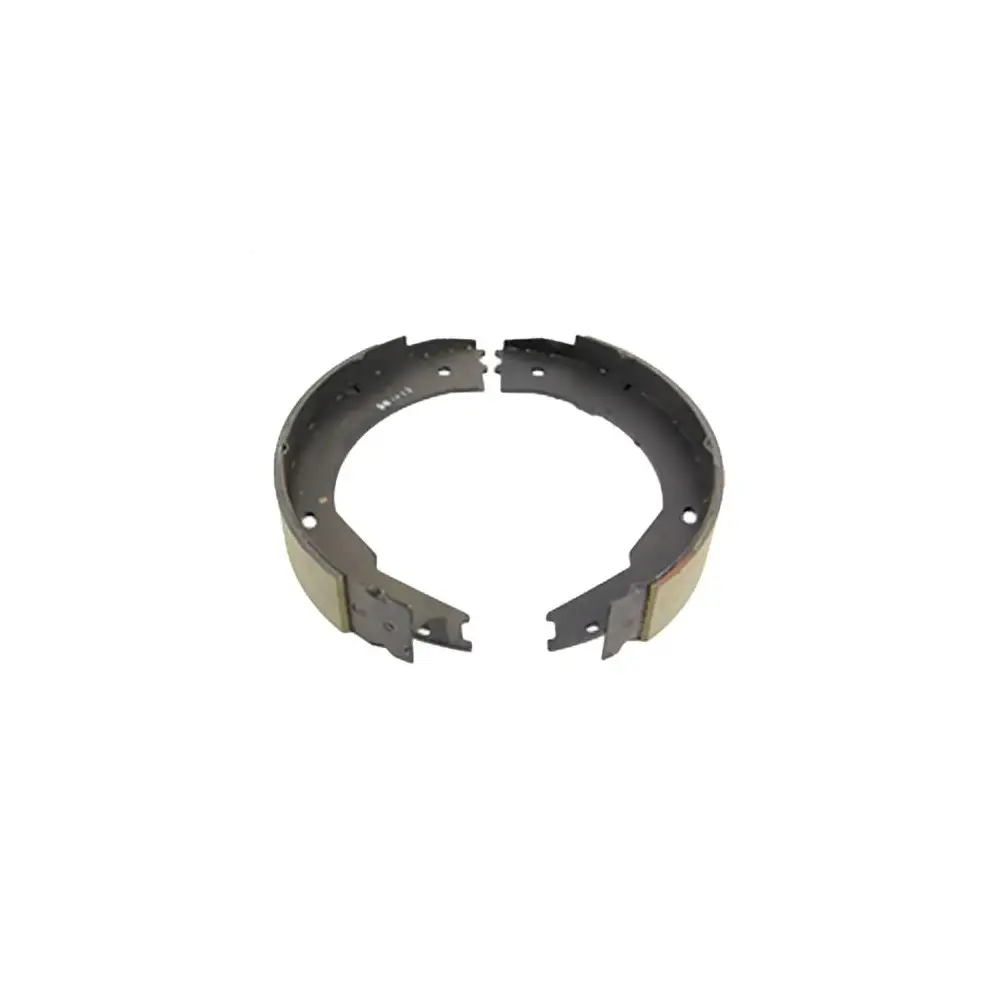

  K71-048 Shoe & Lining Kit
  K71-363 Spring Kit
  K71-324 Adjustor Kit

Features & Benefits

• Manually Adjusted At The Controller To Provide The Correct Braking Capability For Varying Road And Load Conditions
• Modulated To Provide More Or Less Braking Force, Thus Easing The Brake Load On The Towing Vehicle
• They Have Very Little Lag Time From The Moment The Tow Vehicle’s Brakes Are Actuated Until The Trailer Brakes Are Actuated
• In An Emergency Situation, They Can Provide Some Braking Independent Of The Tow Vehicle
• No Supplier Warranty
