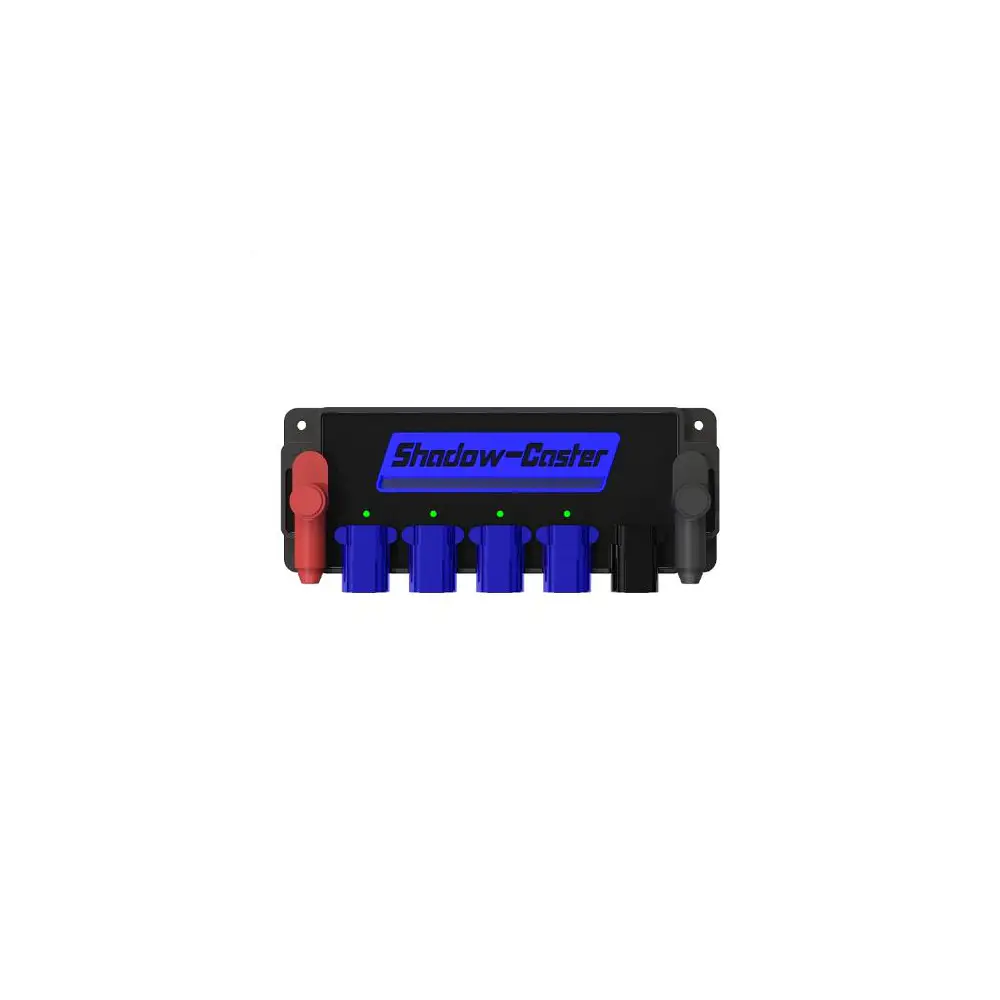

4-Channel Power Distribution Module – Shadow-Caster LED Lighting SCM-PDCH4
The SHADOW-CASTER Power Distribution Box is a 4-position power distribution box that provides a convenient way to connect up to 4 SHADOW-CASTER underwater lights. Digital over-current protection for each output insures safe operation of multiple lights and provides an easy way to manage the relatively high current switching needs of multiple light installations. The Power Distribution Box is housed in a compact waterproof box that is ideal for mounting in bilge and wet locations.
Attributes
- Recommended Use: Two Or More Underwater Lights
- Voltage Rating: 12 To 24 Volt
- Power Rating: 10 Amp
- Receptacle Type: No Receptacle
- Number Of Connections: 4
- GFCI/ Overload Protection: Yes
- Length (IN): 7.9 Inch
- Width (IN): 3 Inch
- Height (IN): 1-1/2 Inch
- Color: Black
- UL Listed: No
- With Flip Cover: No
- Marine: Yes
Features
- Compact Remote Power Control Box
- Green/Red LED Indicates The Status Of Each Output Channel
- Individual Digital Over-Current Protection For Each Channel
- Compatible With SHADOW-CASTER Single And Multi-Color Lights
- Recommended When Installing Two Or More Underwater Lights
- Can Be Used With A Helm Mounted Switch Or With No Switch When Using A Compatible SHADOW-CASTER Controller
- Blue SHADOW-CASTER Back Light Indicates State
- Limited 3 Year Warranty
